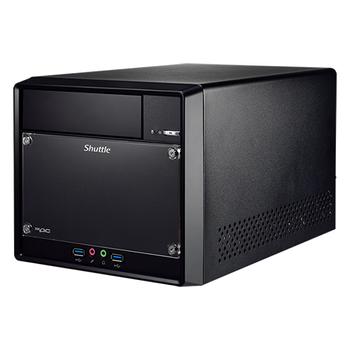

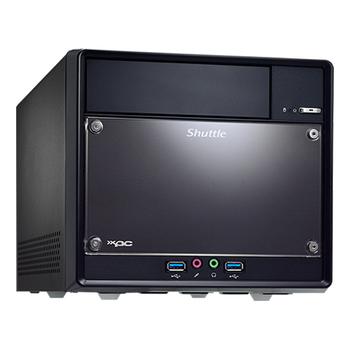

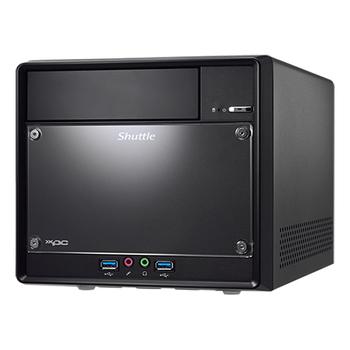

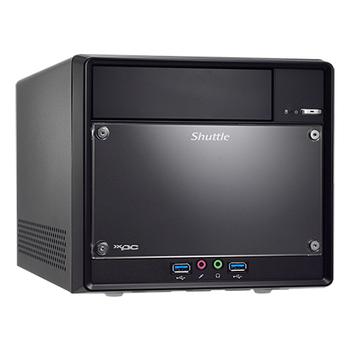

SHUTTLE SH510R4 Barebone PC

XPC cube SH510R4

• For Intel processors in the LGA1200 socket (Gen 10/11)
• Up to 64 GB of DDR4 memory
• Two M.2 slots (1× M.2-2280, 1× M.2-2230)
• PCIe-×16-4.0 for dual-slot graphics cards
• PCIe-×1-3.0 for expansion cards
• 4× USB 3.2 (5 Gbit), 4× USB 2.0
• 1× HDMI 2.0b, 1× DisplayPort 1.4, 1× VGA
• 3× SATA and space for 2× 3.5" and 1× 5.25" drives
• Customisable front panel design
• Remote power-on connection

• Black aluminium chassis with acrylic front plate
• Customisable front panel design: simply change the mylar and add a personal design
• such as a photo, graphics or a logo to the front panel.
• Storage bays: 1 x 5.25" (external), 2 x 3.5" (internal)
• Dimensions: 32.9 x 21,6 x 19.0 cm (LWH without feet) = 13.4 litres
• Height with rubber feet: 19.7 cm
• Weight: 3.4 kg net / 4.5 kg gross

• Mainboard with Shuttle form factor, proprietary design for XPC SH510R4
• Chipset/Southbridge: Intel® H510
• Passive chipset cooling with heat sink
• The Northbridge is integrated in the processor.
• Solid Capacitors for sensitive areas provide excellent heat resistance for enhanced system durability

• AMI BIOS, SPI Interface, 16 MB Flash-EEPROM
• Supports Hardware Monitoring, Watch Dog
• Supports Power Fail Resume
• Supports Firmware-TPM (fTPM) v2.0
• Supports boot up from external USB flash memory
• Supports Unified Extensible Firmware Interface (UEFI)

• Built-in 300 Watt mini switching power supply
• AC input voltage: 100~240V, 50~60 Hz
• 80 PLUS Bronze compliant: The PSU provides at least
• 82/85/82% of efficiency at 20/50/100% of load.
• Active PFC circuit (Power Factor Correction)
• ATX main power connectors: 2x10 and 2x2-pin
• Graphics power connector: 6-pin
• Other connectors: 4x SATA, 2x Molex

• This system comes without operating system.
• It is compatible with Windows 10/11 (64-bit) and Linux (64-bit)

• Processor Socket LGA 1200
• Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold and Celeron processors
• Supports the 10th and 11th generation Intel Core processors, code name "Comet Lake-S" and "Rocket Lake-S" in 14++ nm process technology
• Maximum supported processor power consumption (TDP) = 125 W
• Up to 10 CPU cores, 20 threads and 20 MB of L3 cache
• Does not support the unlock-function of Intel K-Series processors.
• The processor integrates PCI-Express, memory controller and the graphics engine on the same die.
• However, processors with "F" identifier do not support integrated graphics
  (performance features depending on processor type)

• Shuttle I.C.E. (Integrated Cooling Engine) advanced I.C.E. heatpipe technology, linear-controlled 92mm fan
• SilentX cooling and noise reduction technology with Active Airflow

• 2x 288-pin slot
• Supports DDR4 memory at 1.2V
• Supports Dual Channel mode
• Supports max. 32 GB per DIMM, maximum total size of 64 GB
• The maximum DDR4 clock frequency depends on the processor type used:
  • Gen. 11 "Rocket Lake" supports DDR4-3200 (PC4-25600U)
  • Gen. 10 "Comet Lake" Core i7/i9 supports DDR4-2933 (PC4-23433U)
  • other "Comet Lake" support DDR4-2666 (PC4-21300U)

• 1x PCI-Express x16 v4.0 slot
  (supports PCI-Express v3.0 with Gen. 10 "Comet Lake" processors)
• 1x PCI-Express x1 v3.0 slot, open-ended
• Supports dual-slot (double-width) graphics cards (occupies the second PCI-Express slot)
• The maximum size acceptable for display cards is 273 x 98 x 38 mm.
• Graphics power connector: 6 pins

• The features of the integrated Intel UHD graphics function depend on the processor type used.
• Certain processor models do not support integrated graphics
• The PC features three video outputs:
  • 1x HDMI v2.0b (only HDMI v1.4b with Gen. 10 "Comet Lake" Prozessoren)
  • 1x DisplayPort v1.4
  • 1x D-Sub/VGA
• HDMI 2.0b and DisplayPort support displays with 4K Ultra HD resolution at 3840 x 2160 at 60 Hz refresh rate (2160p/60)
• HDMI 1.4b supports Ultra HD resolution at 30 Hz.
• Supports two independent displays with the integrated graphics function
• Supports more displays in combination with a discrete graphics card
• Hardware video decoding/encoding
• DisplayPort and HDMI support multi-channel digital audio over the same cable

• Storage bays: 1 x 5.25" (external), 2 x 3.5" (internal)
• Using the optional accessory PHD3
• two 2.5" drives can be installed into one 3.5" bay.

• 3x Serial ATA 6G connector onboard (rev. 3.0, max. 6 Gbit/s)

• The M.2 2280M slot provides the following interfaces:
  • PCI-Express Gen. 3.0 X4, supports NVMe
  • SATA v3.0 (max. 6 Gbps)
• It supports M.2 cards with a width of 22 mm
• and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
• Supports M.2 SSDs with SATA or PCI-Express interface

• Interfaces: PCI-Express Gen. 3.0 X1 und USB 2.0
• Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
• Supports WLAN extension cards (optional Shuttle accessory: WLN-M)

• Audio Codec: Realtek ALC662/ALC897/ALC888S, 5.1 channel
• Three analog audio connectors (3.5mm) at the backpanel:
• Line-in (blue), line-out (green) and microphone input (pink)
• shared with 5.1 channel line-out (front, rear, center/bass)
• Front panel: microphone input and head-phones output (line-out)
• DisplayPort and HDMI support multi-channel digital audio over the same cable

• Intel i219LM PHY connected to the MAC of the processor
• Supports 10 / 100 / 1.000 MBit/s operation
• Supports WAKE ON LAN (WOL)
• Supports network boot by Preboot eXecution Environment (PXE)

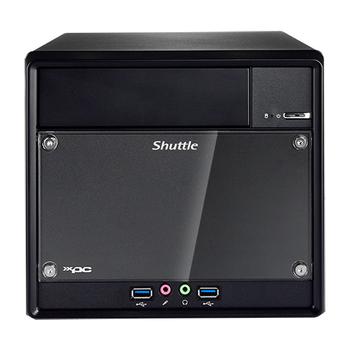

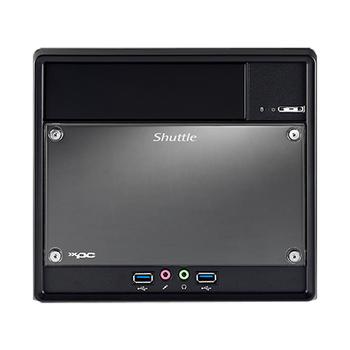

• Microphone input (3.5 mm)
• Headphone output (3.5 mm)
• 2x USB 3.2 Gen 1 (max. 5 Gbps), blue
• Power button
• Power indicator (Blue LED)
• Hard disk drive indicator (Yellow LED)

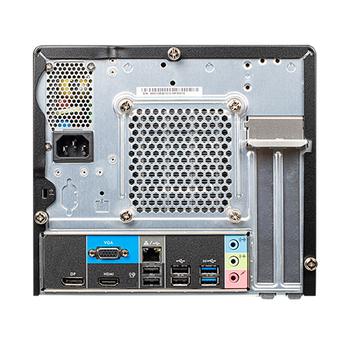

• 1x HDMI 2.0b (HDMI 1.4b with Gen. 10 "Comet Lake" processor)
• 1x DisplayPort 1.4
• 1x D-Sub VGA (analog)
• 2x USB 3.2 Gen 1 (max. 5 Gbps), blue
• 4x USB 2.0 (black)
• 1x Gigabit LAN (RJ45)
• 1x Audio Line-out (3.5 mm)
• 1x Audio Line-in (3.5 mm)
• 1x Microphone Input (3.5 mm)
• 1x 4-pin connector (2.54 mm pitch) supports:
  • external power on button
  • Clear CMOS function
  • 5V DC voltage for external components
• Optional: Serial RS232 port (Accessory: "H-RS232")
• 3x perforation for optional WLAN antennas (Accessory: "WLN-M")

• Occupied front panel connectors for USB, audio, buttons, LEDs
• 1x RS232 serial interface (2x5 pin header)
• 2x fan connectors (4-pin header)
• 1x USB 2.0 (4-pin header)

• Multi-language XPC Installation Guide (EN, DE, FR, ES, JP, KR, SC, TC)
• Windows 64-bit driver disk
• 2x Serial ATA cables
• AC Power Cord (with protective-earth contacts)
• Heatsink Compound
• Protector cap for the CPU socket (do not use if heatpipe or fan is mounted)
• Bag with screws

• Back panel adapter for serial RS232 port (H-RS232)
• WLAN IEEE 802.11ac/BT4.2 kit with two external antennas (WLN-M)
• Adapter for 2.5" drives such as SSDs (PHD3)
• Adapter cable for external power button (CXP01)

• Permissible ambient temperature during operation: 0~40 °C
• Relative humidity: 10~90 %.

• EMI: FCC, CE, BSMI, C-Tick
• Safety: CB 60950/62368, cTUVus, BSMI
• Other: RoHS, Energy Star 5.0, ErP
• This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  • (1) 2014/30/EU relating to electromagnetic compatibility (EMC),
  • (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  • (3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP).
